Description

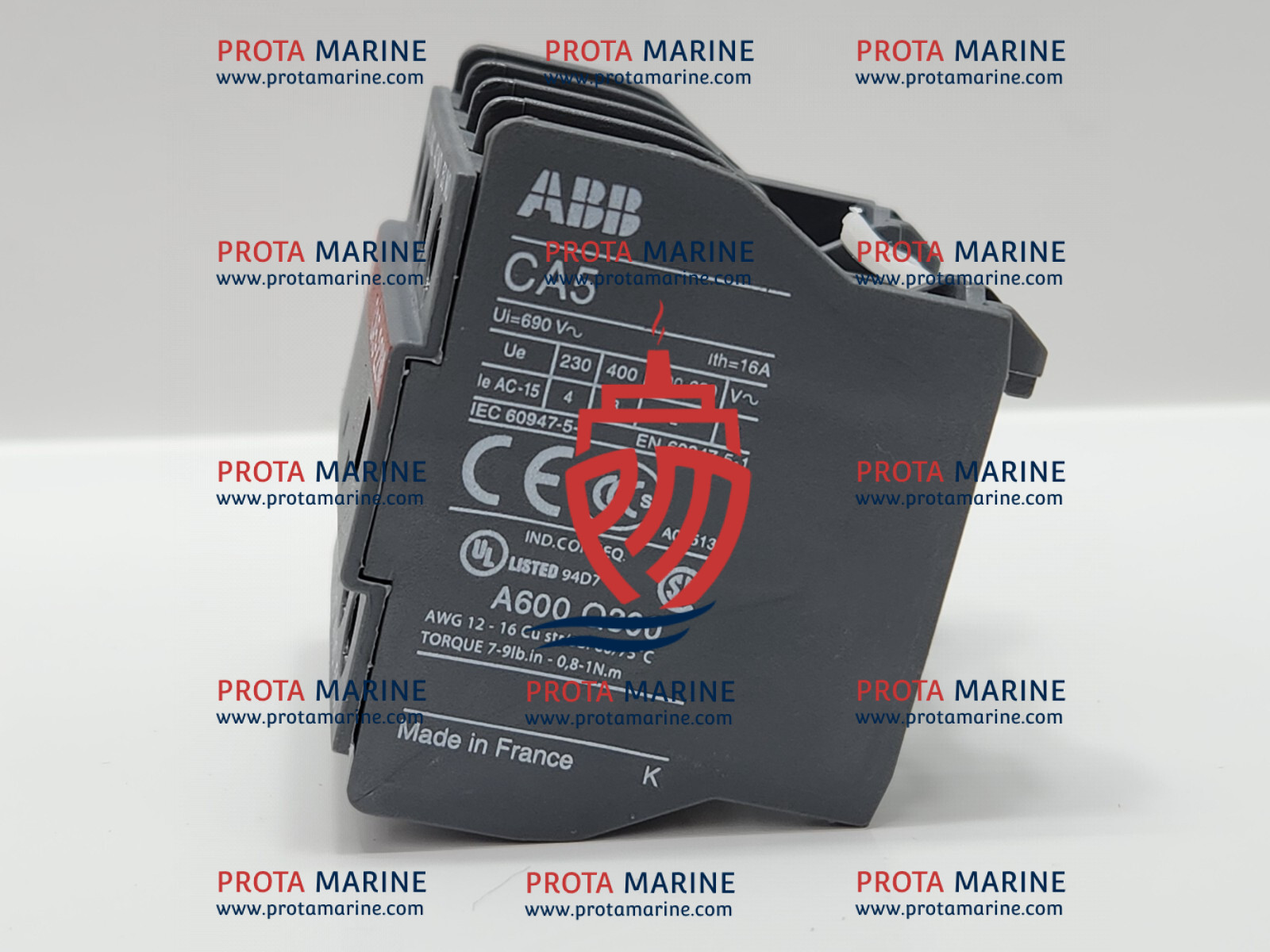

ABB CA5-22M AUXILIARY CONTACT BLOCK (NEW WITHOUT BOX)
ABB
CA5-22M
AUXILIARY CONTACT BLOCK
UI = 690V~ ITH = 16A
UE 230 400 500-690 V~
LE AC-15 4 3 2 A
AWG 12-16 CU STR/SOL 60/75C
TORQUE 7-19LB.IN – 0,8-1 N.M
MADE IN FRANCE
REF: FKM8799
The ABB CA5-22M is an auxiliary contact block designed to mount on ABB contactor assemblies, providing supplementary switching contacts for signalling, interlocking, and control circuit functions. Used across marine electrical panels, motor starter assemblies, and switchboard control systems onboard ships, auxiliary contact blocks are essential for maintaining reliable circuit status feedback and control logic in the demanding conditions of a marine environment.
Key Features
✓ Rated insulation voltage of 690V~ with a thermal current rating (ITH) of 16A for robust performance in industrial and marine-grade installations
✓ AC-15 operational current ratings specified across 230V, 400V, and 500–690V supply voltage ranges
✓ Accepts AWG 12–16 copper stranded or solid conductors rated at 60/75°C for flexible wiring options
✓ Terminal tightening torque of 0.8–1 N.m (7–19 lb.in) ensures secure, vibration-resistant terminations suitable for shipboard use
✓ Manufactured in France to ABB quality standards, ensuring consistent construction and dimensional compatibility with ABB contactor ranges
Marine Applications
Motor starter and contactor panels in engine rooms and machinery spaces
Switchboard interlocking and auxiliary control logic circuits
Pump, fan, compressor, and auxiliary machinery motor control centres
Deck machinery and navigation equipment electrical control panels
HVAC, refrigeration, and ballast system motor control installations on commercial and offshore vessels
Why Marine Engineers Choose
ABB CA5-22M auxiliary contact blocks offer a compact, reliable means of expanding contactor functionality across a wide voltage range. Their compatibility with ABB contactor platforms and straightforward installation make them a practical choice for both original equipment installations and like-for-like maintenance replacements across vessel types and control system configurations.
Ideal For
Merchant vessels, offshore platforms, naval ships, ferries, bulk carriers, tankers, and commercial marine operators requiring ABB-compatible auxiliary contact solutions for motor control, switchboard, and electrical panel applications.
Technical Support & Compliance
We provide complete solutions including remote troubleshooting, onboard support, testing and commissioning, repair, retrofit and upgrade, and integration support for ABB contactor and auxiliary contact block installations. To confirm compatibility with your system, please share nameplate photos, part numbers, wiring drawings, system model or version, vessel name or IMO number, and scope of work. Suitability for specific installations is subject to confirmation based on the details provided.
